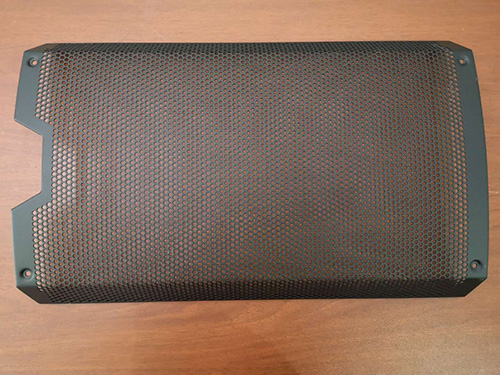

Automatic spraying is mostly used in metal processing products such as speaker nets, perforated nets, speaker nets, etc. In addition to automating the spraying process, the automatic spraying line generally has other processes such as dust removal, drying, and leveling. So, what are the requirements for dust removal in the automatic spraying production line? The following editor will specifically introduce several key points of the design of dust removal facilities for automatic spraying lines.

​

1. The flat belt conveying mode is adopted, and the surface of the belt is required to be wear-resistant, slip-resistant, and resistant to high temperature of 150°C (thickness 2mm) or more.

2. The load-bearing capacity of the assembly line: 40kg/㎡, and the belt has no slipping, stalling, deceleration and other phenomena.

3. The belt surface has the characteristics of corrosion resistance, easy cleaning and anti-static.

4. The edge protection of the spraying line is made of aluminum, and the anti-scratch protection pad is installed in the direction of the belt inside.

5. The drive motor adopts a speed-adjusting motor, and a frequency converter is used to control the speed. The speed can be adjusted from 0-10m/min.

6. The entire section of the line body is designed with an automatic anti-deflection device for the conveyor belt.

7. The overall height design of the spraying line can be adjusted with a range of ±200mm.

8. When designing the line body, pay attention to preparing for the future lengthening of the assembly line. The same line body can be added when the length of the line body is not sufficient for use.

9. The dust removal of the automatic spraying line is cleaned by a rotating drum. The height size can be adjusted according to the height of the product. The adjustment parameters are digitally displayed and visible (there are better suggestions and methods can also be adopted, mainly to clean up dust and debris Crumbs).

10. It can automatically identify whether there is a workpiece, start working when there is a workpiece, and stop automatically when there is no workpiece.

11. There is a dust recovery device during the cleaning process, and the cleaned dust can be recycled to the recycling bin for cleaning.

12. The cleaning roller is made of wear-resistant and soft material, which can not damage the surface of the plate, has a good dust removal effect, and is easy to clean and replace.

13. The dust removal device adopts a fully enclosed structure, and the height of the inlet and outlet at both ends is 13cm.
